Item# REF9632IX
Infinity

Reference 9632ix

Details

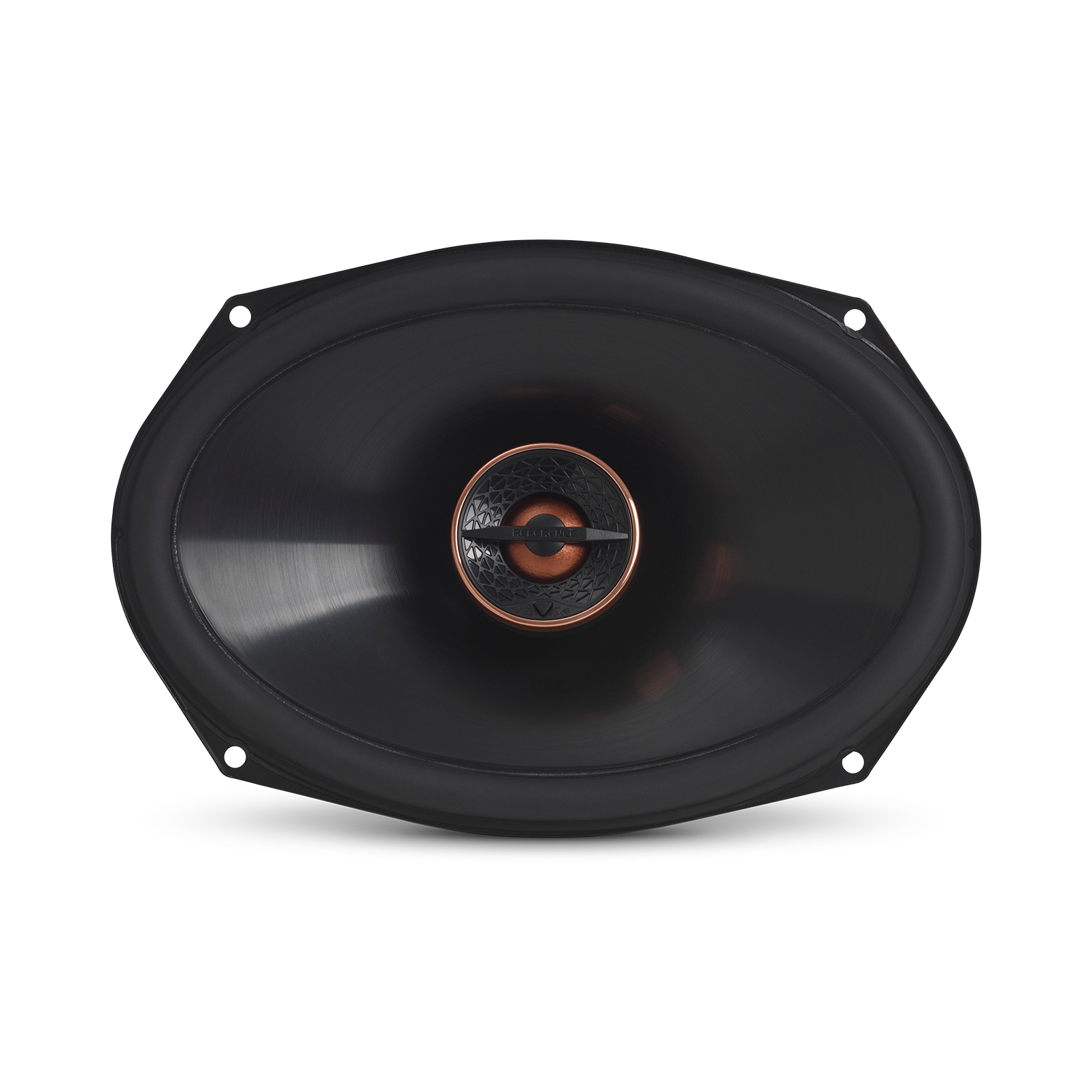

6" x 9" (152mm x 230mm) coaxial car speaker, 300W


Variations
RM 599.00 599.0 per pair
Highlights

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component—they’re the perfect upgrade from factory speakers.

Know What's In The Box

Know What's <em>In The Box</em>
  • 1 x Pair of coaxial speakers
  • 1 x Pair of speaker grilles
  • 1 x Pair of spacers
  • 8 x Mounting screws
  • 8 x Speed clips
  • 1 x Set foam mounting tape
  • 1 x Owner’s manual

Product Specs, Manuals, Compatibility & Features

Documents & Downloads

The latest owner's manuals, quick start guides, and documents.

General Specifications

Description
6"x9" (152mm x 230mm) coaxial car speaker
Power Handling
100W RMS, 300W peak
Sensitivity (@ 2.83V)
94dB
Frequency Response
46Hz – 20kHz
Impedance
3.0 ohms

Features

Edge-driven, textile tweeters

The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable tweeter output level

The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.

Plus One™ woofer cone architecture

Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size

Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive pricing

Reference speakers provide step-up Infinity sound at mainstream prices.
