Reference 9632ix

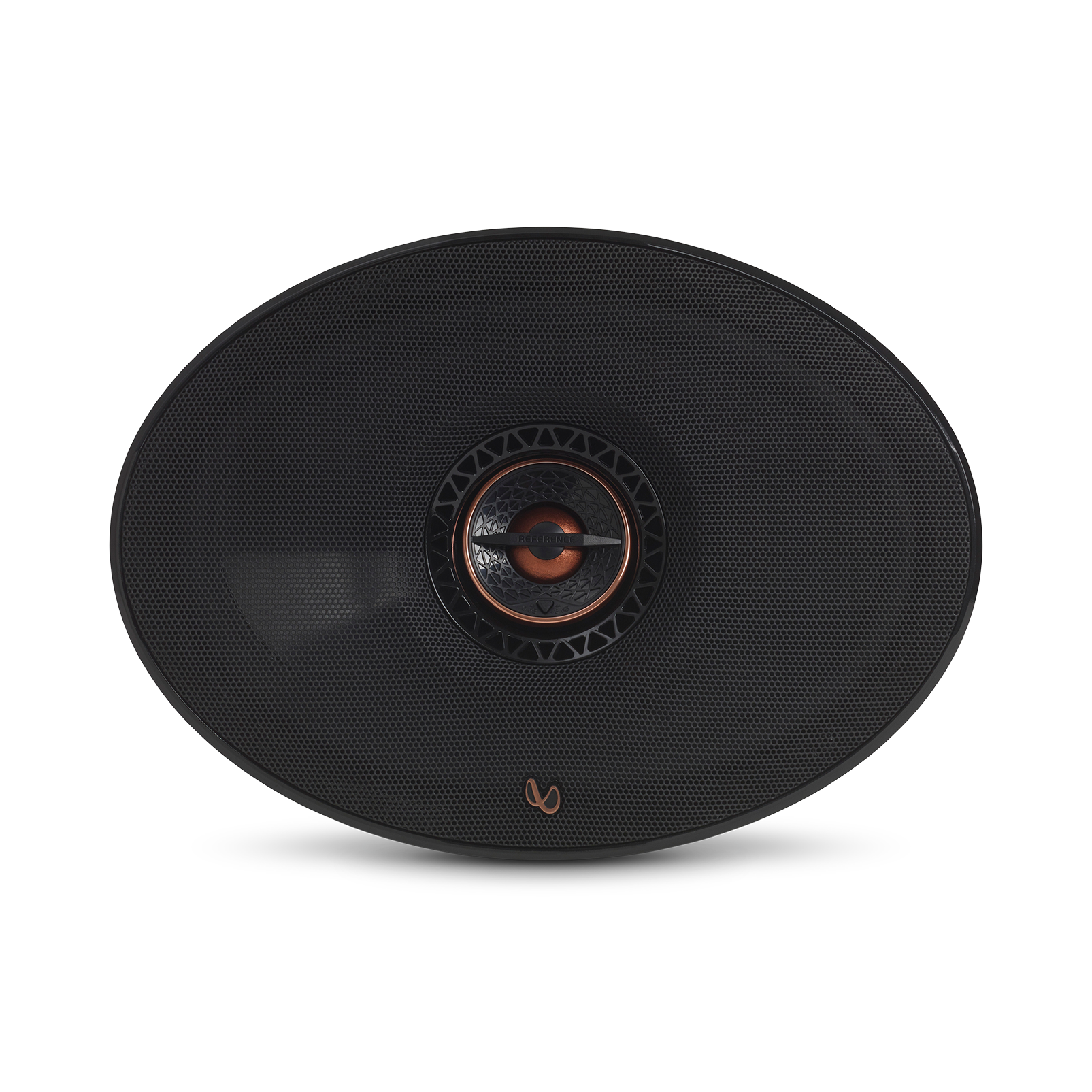

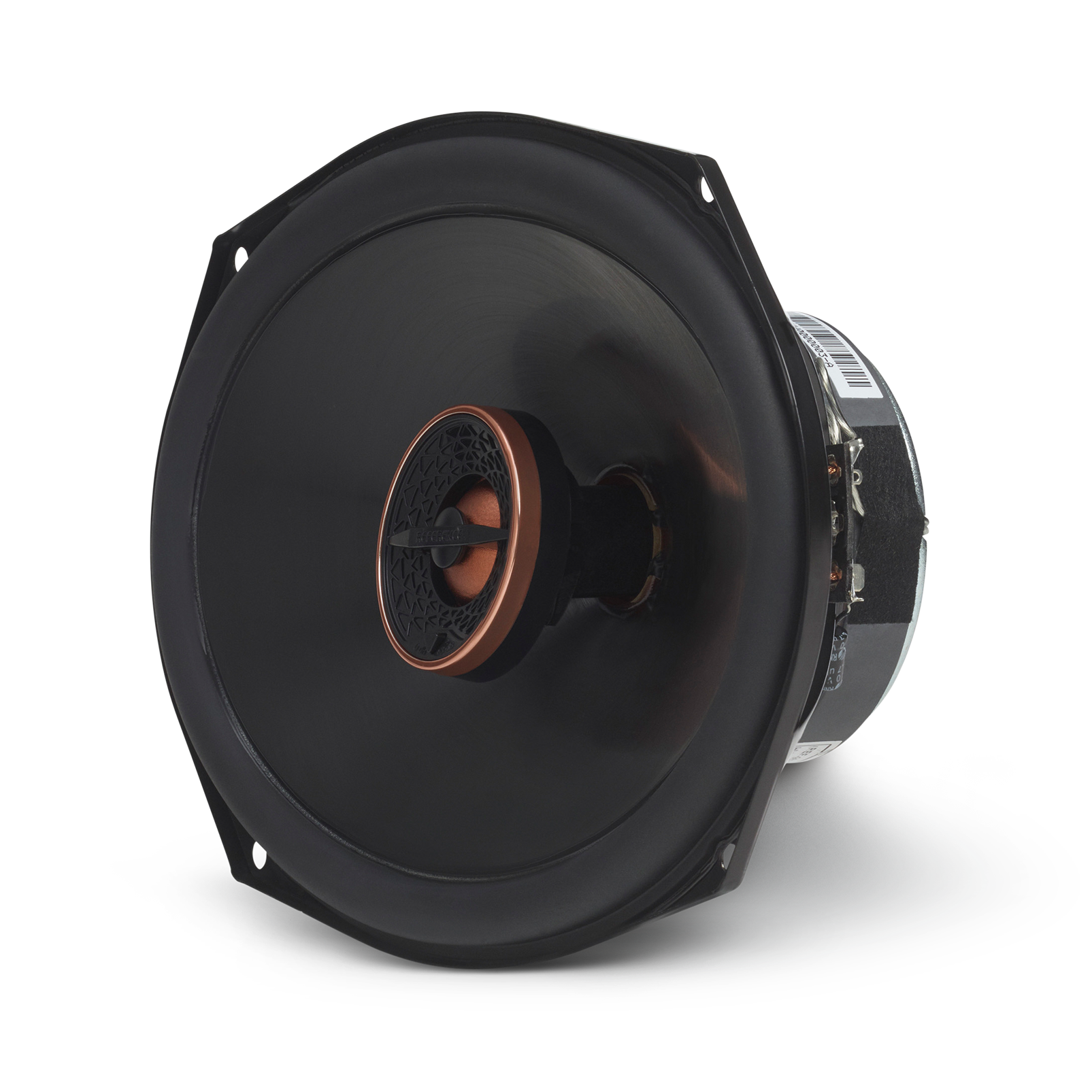

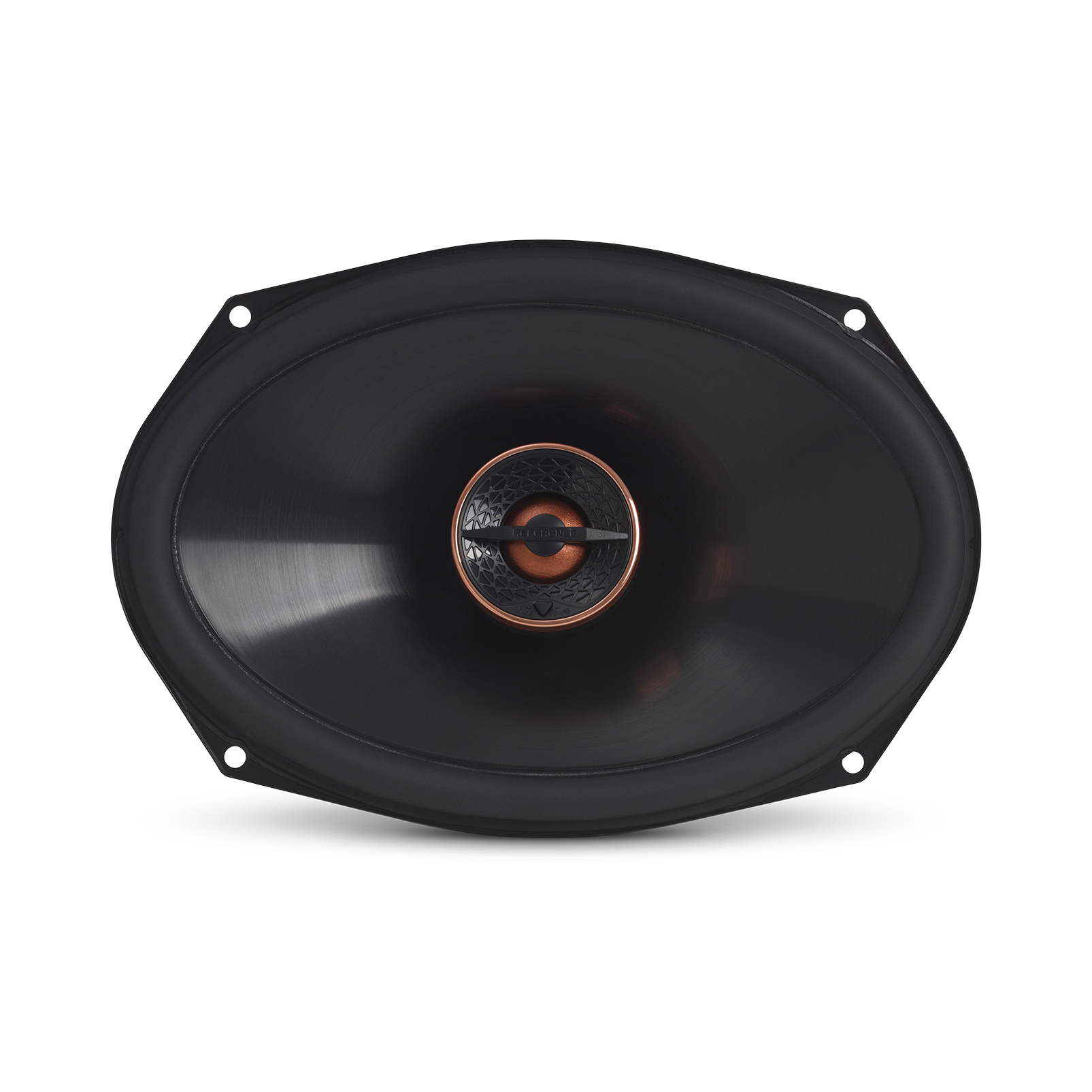

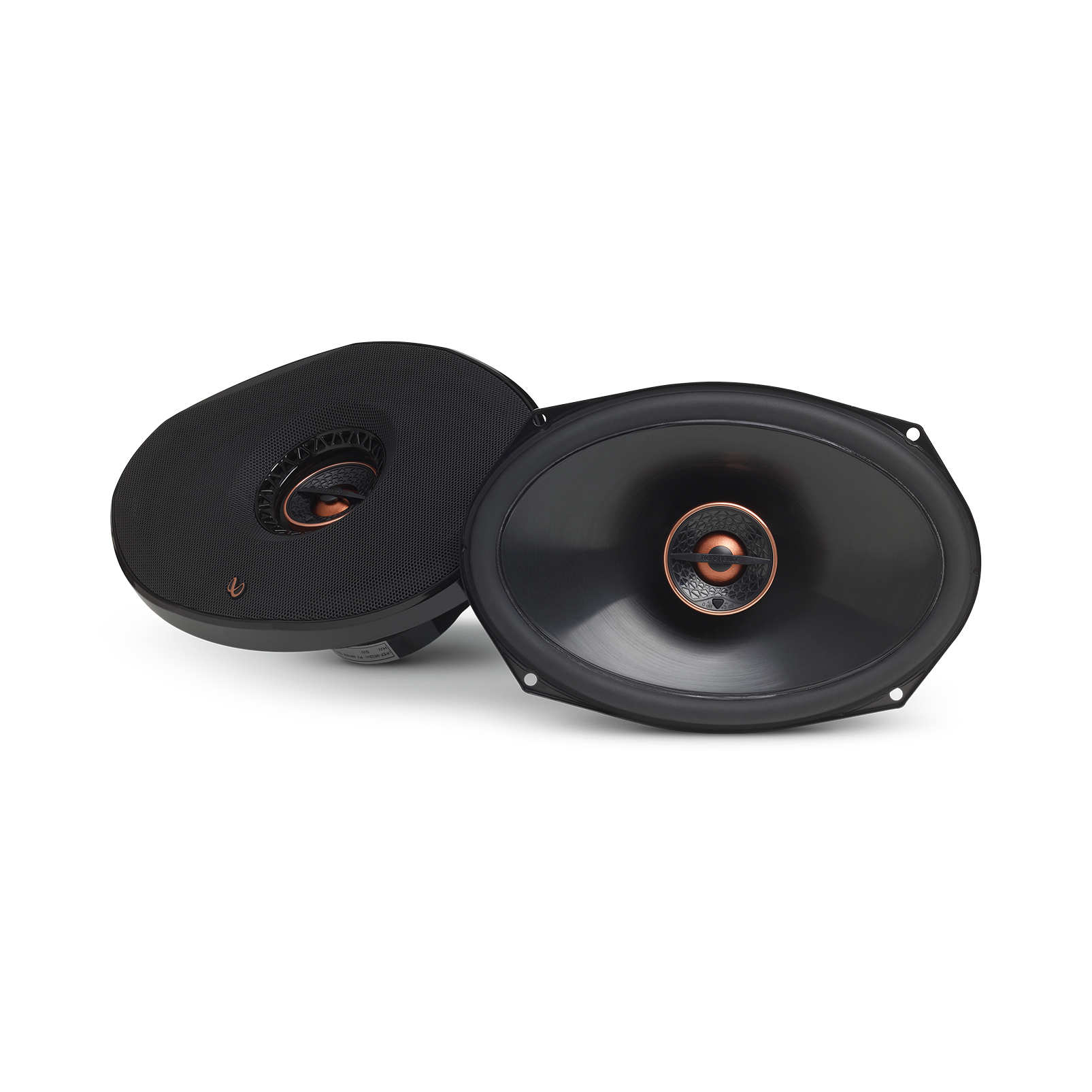

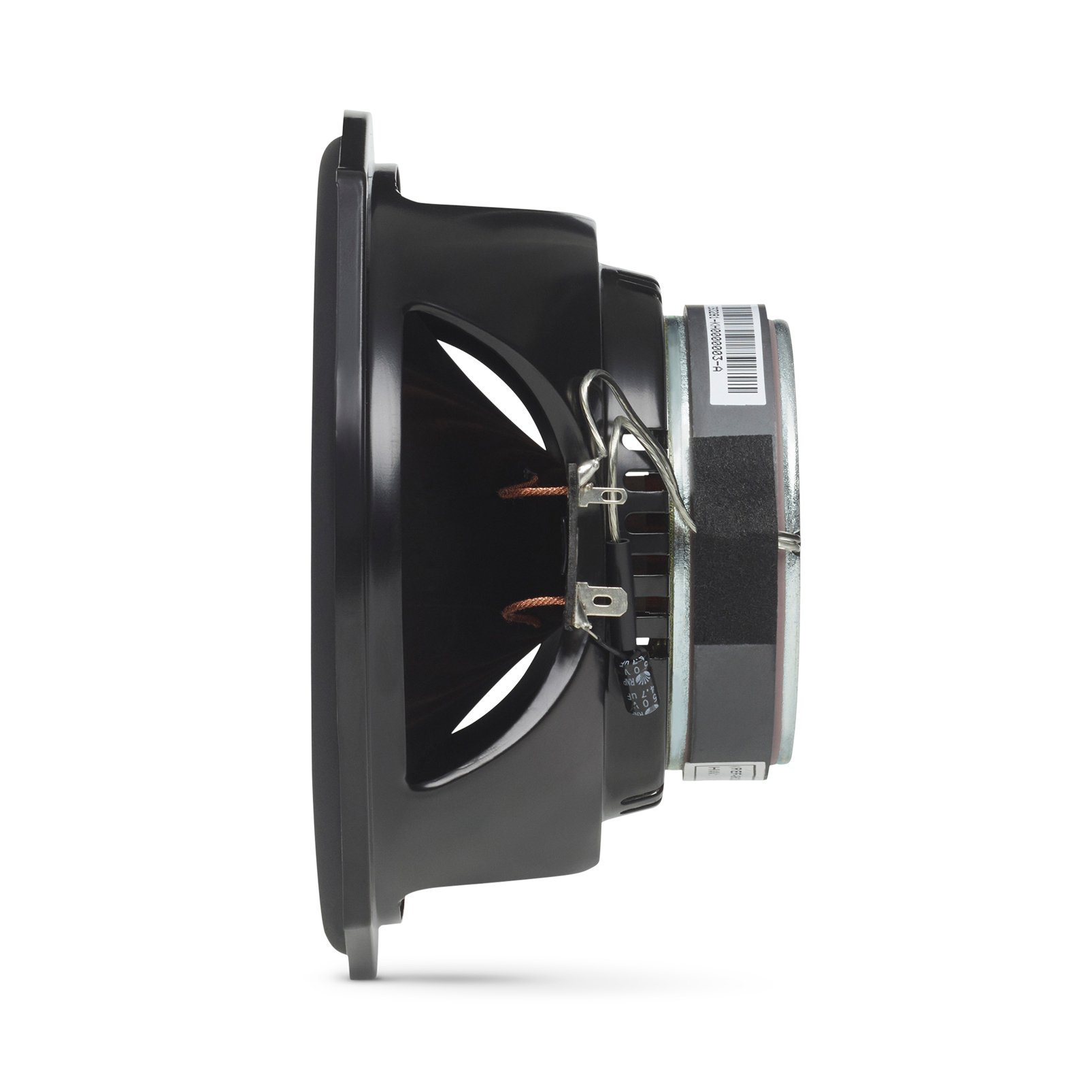

Details https://my.infinityspeakers.com/REFERENCE+9632IX.html?dwvar_REFERENCE%209632IX_color=Black-GLOBAL-Current6" x 9" (152mm x 230mm) coaxial car speaker, 300W
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component—they’re the perfect upgrade from factory speakers.

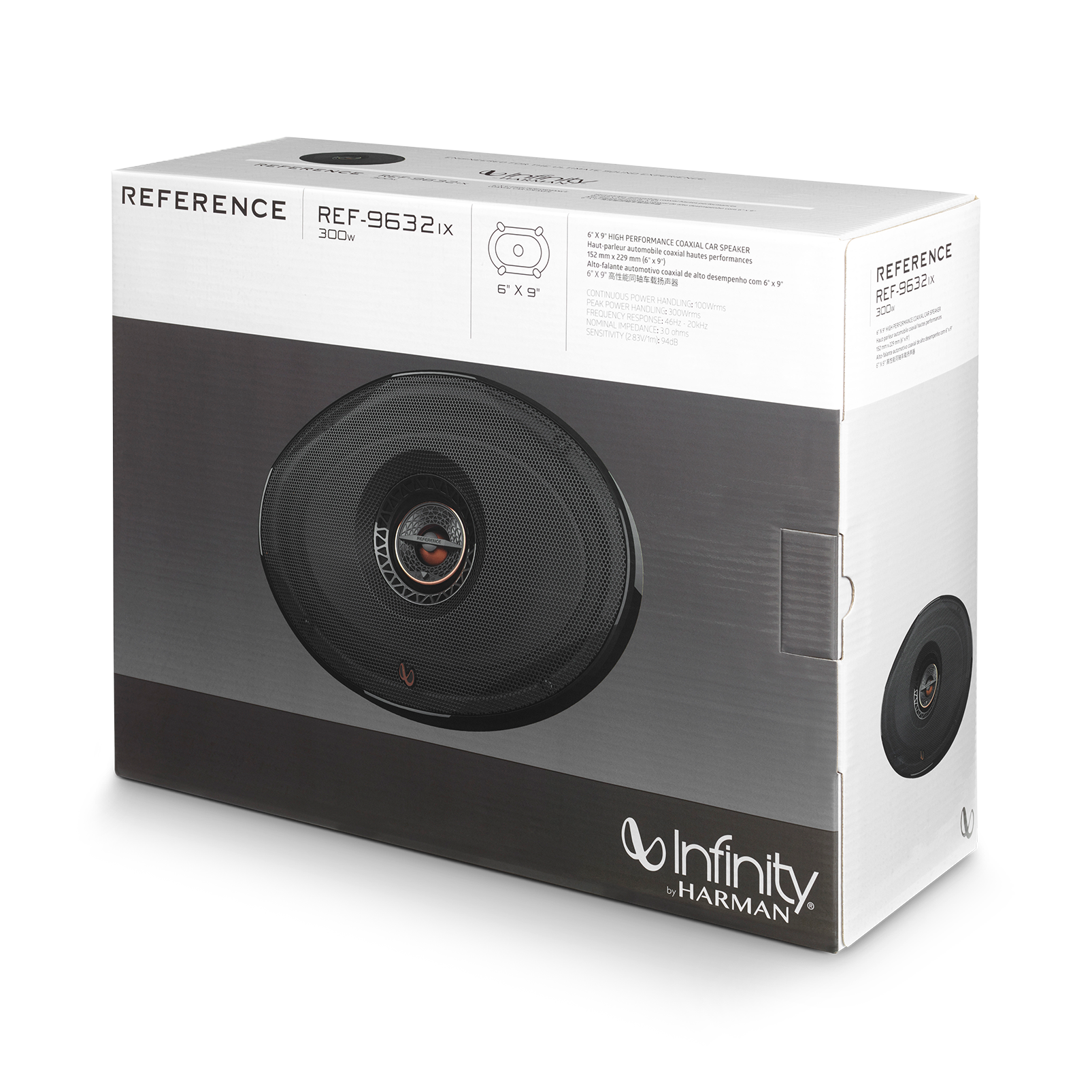

Know What's In The Box
- 1 x Pair of coaxial speakers
- 1 x Pair of speaker grilles
- 1 x Pair of spacers
- 8 x Mounting screws
- 8 x Speed clips
- 1 x Set foam mounting tape
- 1 x Owner’s manual
Product Specs, Manuals, Compatibility & Features
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
General Specifications
- Description
- 6"x9" (152mm x 230mm) coaxial car speaker
- Power Handling
- 100W RMS, 300W peak
- Sensitivity (@ 2.83V)
- 94dB
- Frequency Response
- 46Hz – 20kHz
- Impedance
- 3.0 ohms
Features
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.
Competitive pricing
Reference speakers provide step-up Infinity sound at mainstream prices.
